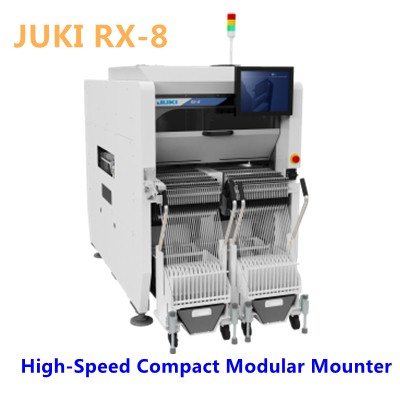

JUKI High Speed SMT Chip Mounter RX-8
Features:
- High-speed placements of up to 100,000 CPH.*¹
- Best-in-class placement rate per square meter (sq ft)*²
- Integrates seamlessly with the production enviroment.
- It is very simple to generate PCB programming data.
- Trace Monitor tracks quality throughout the production process.
- Low impact placement for flexible circuits.
- The P20 high-precision planet head is ideal for high speed pinking and placing from a single reel.
- State-of-the-art cetering and inspection vision system.
- New high accuracy camera for inspection and centering.
*¹ Optimum conditions *² Market sur-ey data
Specification:
High-speed Compact Modular Mounter RX-8 | ||
---|---|---|
Board size | 50×50~510mm*¹ *²×450mm | |
Component height | 3mm | |
Component size | 0201*³~□5mm | |
placement speed (optimum) | Chip | 100,000CPH |
placement accuracy | ±0.04mm (Cpk ≧1) | |
Feeder capacity | Up to 56 *⁴ | |
Power supply | 3-phase AC200V、220V~430V *⁵ | |
Apparent power | 2.1kVA | |
Operating air pressure | 0.5±0.05MPa | |
Air consumption (standard) | 20L/min ANR (during normal operation) | |
Machine dimensions(W×D×H)*⁶ | 998mm×1,895mm×1,530mm | |
Mass (approximately) | 1,810kg (with fixed bank) / 約1,760kg (with bank changing) |
*1 BOC, Bad Mark, and 2D barcode can read only if board length is from 50mm to 350mm.
*2 In long board mode (two boards can be produced simultaneously up to 420mm long).
*3 Please cantact JUKI for details.
*4 When using RF08AS.
*5 220V-430V requires a separate transformer.
*6 Depth D does not include the monitor, and height H does not include the signal light when the conveyor height is 900 mm.
