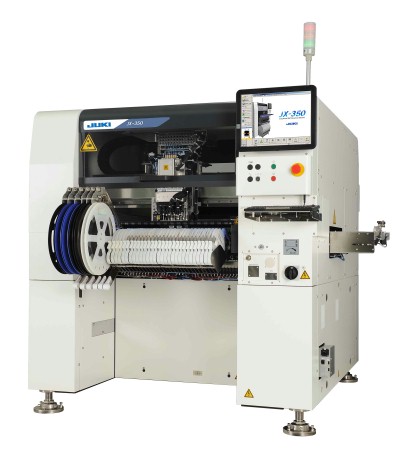

Long Board SMT Placement Machine JUKI JX-350-Company News-JUKI Pick and Place Machine,JUKI SMT Machine-JUKI SMT Machine

Chip
	32,000CPH chip (Laser centering/Optimum)
	21,000CPH chip (Laser centering / IPC9850)

■		From 0603 to □33.5mmsquare components

■		JUKI laser centering for high speed, high accuracy placement

■		Improved placement quality

■		Alternate pick by screw-type nozzles* achieves high-speed placement for large component up to 25 mm diameter.

■		High-precision placement of diffusion lenses

■		Capable of up to 1,500 mm long board production, top class board size in industry.*

■		Various supply methods *
*option

Board size	1time clamping	650mm×360㎜
	2times clamping	1,200㎜×360㎜
	3times clamping*	1,500㎜×360㎜
Component height		6mm/12mm
Component size		0603(0201) ～ □33.5mm
Placement speed (chip)	Optimum	32,000CPH
Placement speed (chip)	IPC9850	21,000CPH
Placement accuracy		±0.05mm（Cpk≧1）
Feeder inputs	Front-side fixed mechanical feeder bank(Standard)	Max.40 in case of 8mm tape
	Front+rear-side fixed mechanical feeder bank*1	Max.80
	Front+rear-side fixed electrical feeder bank*1	Max.160*2

*1 This function is supported with an option.
*2 When using 8mm tape(on a Electric double tape feeder)
