JUKI Chip Shooter KE2060

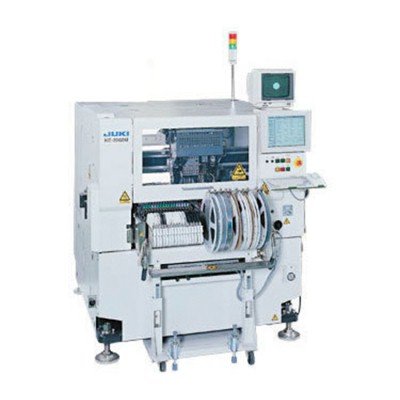

❙ Introduce of JUKI KE-2060
The ultra-flexible KE-2060 can place a wide range of components from 0603 and
ICs, to odd-form, all at a high rate of speed.
■ 12,500CPH: Chip (laser centering/effective tact)
■ 1,850CPH: IC (vision centering/effective tact), 3, 400CPH with MNVC option.
■ One multi-nozzle laser head (4 nozzles) plus one high resolution head (1 nozzle)
■ From 0603 (0201) to 74mm square components or 50× 150mm 0402 (01005) option factory installed.
■ Vision centering system (featuring bottom, side, and back lighting,ball recognition and split recognition)
1 Actual throughput may vary.
2 Please download brochure for details.
❙ Specification of JUKI KE-2060
| Model | JUKI KE-2060 | ||
| Board Size | M size (330x250 mm) | ||
| L size (410x360 mm) | |||
| L-Wide size (510x360 mm) | |||
| E size (510x460 mm)*1 | |||
| Component size | Laser recognition |
0603 (0201)～□20mm or 26.5×11mm (0402 (01005) optional)*5 |
|
| Vision recognition | 1.0×0.5mm*2～□20mm or 26.5×11mm | ||
| Placement speed | Chip | 12,500CPH*2 | |
| IC | 3,290CPH*3 | ||
| Placement accuracy | Laser recognition | ±0.05mm | |
| Vision recognition | ±0.04mm | ||
| Feeder inputs | Max. 80 on 8mm T/F*4 | ||
*1 Production arrangement starts only after receipt of P/O for E size board.
*2 Effective tact: The chip placement speed indicates an estimated value obtained when the machine places 400 1005-chips all over an M size board.
(CPH＝number of components placed for one hour）
*3 Estimated value when using MNVC and picking up components simultaneous with all nozzles.
*4 In addition to matrix tray changer, max 110.
*5 Please ask for details on 0402(01005) placement.
