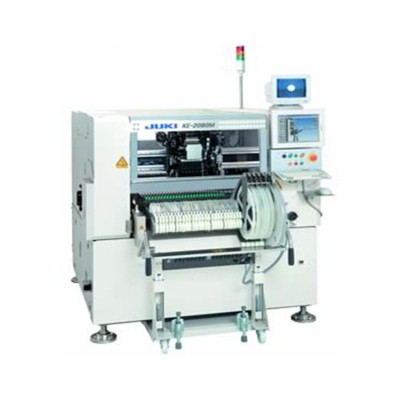

JUKI chip shooter KE2080
The ultra-flexible KE-2080 can place a wide range of components from 0402 (01005) and ICs, to odd-form,
All at industry leading accuracy and speed.
20, 200CPH(laser centering/Optimum)(0.178Sec. /chip)
16, 700CPH(laser centering/IPC9850)
1, 850CPH (vision centering / effective tact)
4, 860CPH with MNVC option.
One multi-nozzle laser head (6 nozzles) plus one high resolution head (1 nozzle)
From 0402 (01005) to 74mm square components or 50× 150mm
Vision centering system (featuring bottom, side, and back lighting, all ball recognition and split recognition)
1 Actual throughput may vary.
2 Please download brochure for details.
|*1||Please ask for details on E size board.|
|*2||When using MNVC. (option)|
|*3||When using high-resolution camera. (option)|
|*4||Effective tact: The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board.|
|(CPH=number of components placed for one hour)|
|*5||Estimated value when using MNVC (option) and picking up components simultaneous with all nozzles.|
|*6||Including matrix tray changer, max 110.|
