Higher Speed, Higher Quality, Improved Capacity.
Placement Monitor Supported model

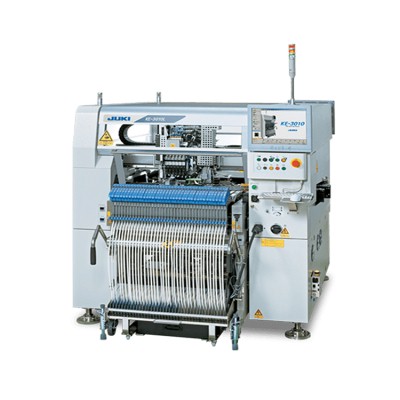

Continued Evolution of the KE Series
23,500CPH chip (Laser centering/Optimum)
18,500CPH (Laser centering / IPC9850)
9,000CPH (Vision centering/MNVC option)
From 0402(01005) to 33.5mm square components
One multi-nozzle laser head (6 nozzles)
The use of electronic double tape feeders enables mounting of a maximum of 160 component types.
High-speed, on-the-fly vision centering
(When using both high-resolution camera and MNVC. (option))
Longer sized PWB in X axis(option)
Max.160 in case of 8mm tape
(on a Electric double tape feeder)*7
1.L-Wide size is optional
2.Applicability to long PWB is optional.
3.When using MNVC. (option)
4.KE-3010A : When using both high-resolution camera and MNVC. (option)
5.Effective tact : The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board. (CPH=number of components placed for one hour)
6.Estimated value when using MNVC and picking up components simultaneous with all nozzles.
MNVC is option in the KE-3010A.
When using Electric double tape feeder EF08HD.
PWB size XL will be KE-3010
