■ From 0402(01005) to 74mm square components or 50×150mm
■ KE-3020VA: One multi-nozzle laser head (6 nozzles) plus; one IC head with CDS sensor (1 nozzle)
■The use of electronic double tape feeders enables mounting of a maximum of 160 component types.
■ MNVC is standard
■ High-speed, on-the-fly vision centering (When using both high-resolution camera and MNVC)
■ High speed feeding of tray components (Option)
■ Longer sized PWB in X axis(option)
■ PoP placement(option)

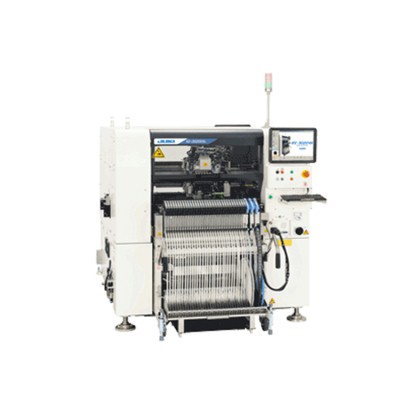

❙Specification of JUKI KE-3020VA
M size (330x250 mm)
L size (4FFF10x360 mm)
L-Wide size (510x360 mm) *1
XL size (610x560 mm)
Applicability to long PWB (L size)*2
Applicability to long PWB (L-Wide size)*2
Applicability to long PWB (XL size)*2
0402(01005)~33.5mm x 33.5mm
3mm~74mm x 74mm or 50 x150mm
1.0 x 0.5mm*3~48mm x 48mm or 24 x 72mm
±0.05 mm (±3σ)
Max.160 in case of 8mm tape (on a Electric double tape feeder)*6
*1. L-Wide size is optional
*2. Applicability to long PWB is optional.
*3. KE-3020VA ： When using high-resolution camera. (option)
*4. Effective tact : The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board. (CPH=number of components placed for one hour)
*5. Estimated value when using MNVC and picking up components simultaneous with all nozzles.
.MNVC is standard in the KE-3020VA.
*6. When using Electric double tape feeder EF08HD.
*PWB size XL will be KE-3020V.
