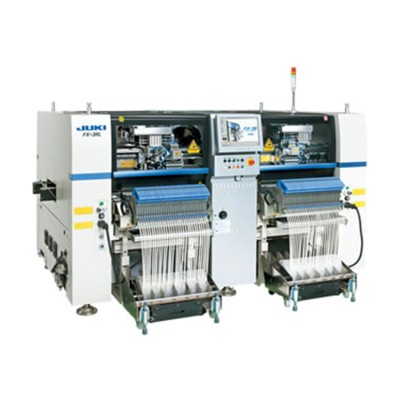

High Speed SMT Pick and Place Machine JUKI FX-3R
❙ Introduce of JUKI FX-3R
■ Chip: 90,000CPH(0.040Sec./chip/Optimum）/66,000CPH(IPC9850)
■ 0402mm(01005 inch)～□33.5mm
■ Laser recognition : ±0.05mm(±3σ)
■ The use of electronic double tape feeders enables mounting of a maximum of 240 component types.
■ Compatible with mechanical and electronic feeders.
■ New linear servomotors and full closed-loop control
■ Two Stations - 4Beams - 4Head Configuration
■ On-the-fly Simultaneous Centering using the 6-nozzle Multi-laser Head
■ 15-inch Touch-panel Color LCD Display
■ Capable of producing long boards used in LED
❙ Specification of JUKI FX-3R
| Model | JUKI FX-3R | |
| Board size | L size(410x360mm) | ○ |
| L-Wide size(510x360mm)*1 | ○ | |
| XL size(610×560mm) | ○ | |
| Component height | 6mm | ○ |
| Component size | Laser recognition | 0402mm(01005 inch)～□33.5mm |
| Placement speed (chip) | Optimum: 0.040Sec./chip(90,000CPH)*2; IPC9850:66,000CPH*2 | |
| Placement accuracy | Laser recognition | ±0.05mm(±3σ) |
| Feeder inputs | Max.240 in case of 8mm tape (on a Electric double tape feeder) | |
*1L-Wide size is optional
*2This speed does not apply to XL board size.
❙ FAQ
Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.
Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.
Q: Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
❙ Packaging & Shipping
If you could not find any similar items you want, you may send some photos to us. because our catalog and website haven't included all of our products.
