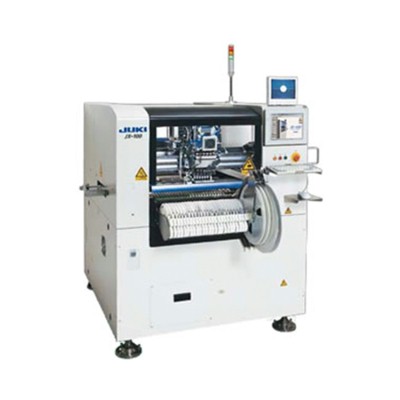

JUKI Flexible SMT Chip Shooter JX-100
❙ Introduce of JUKI JX-100
The machine combines high production capacity with its versatility at a reasonable cost. This system is best suited for a company starting out in surface mount. It is both easy to operate and compact, resulting in a smooth installation.
■ Superior Cost Performance
❙ Specification of JUKI JX-100
Model | JUKI JX-100 |
Board size | Min. 50 × 50 ~ Max. 330 × 250 mm |
Component size | Min. 0603mm(0201 Inch) ~ Max. □33.5mm |
Component centering device | Laser centering (LNC60) |
Placement speed (chip) | 0.187Sec./chip(19,300CPH) |
Placement accuracy | ±0.05 mm (±3σ) |
Feeder inputs | Max. 30 8mm tape feeders, 60 with optional rear bank. |
* Operating System : Windows XP.
* 2 USB ports are standard.
* Height Measurement System(Option) is needed for placing 0603mm(0201 Inch) component.
