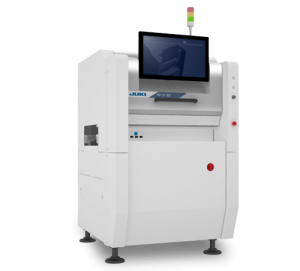

All New RV-2 3D System is the First of its Kind
Running at approximately 25-80 cm²/sec, the all new RV-2 3D system is one of the only AOI systems that can measure placement of LEDs relative to tooling holes on circuit boards and relative to each other.
The RV-2 3D system incorporates DLP technology to not only measure in 2D but also the height of components, features of components, lifted leads, solder joints, which will give you a much better fall accuracy and overall reliability of inspection.
This machine will run at approximately 25-80 cm²/second, and you can adjust the field of view through the software.
We have two modes of programming, one is through a template mode where you leverage a library and a second mode that allows full flexibility to make custom algorithms and explain the math involved in measuring – for example LEDs relative to each other. It can inspect the accuracy of the alignment of LEDs which is the first of its kind in the world that can do that.
