JUKI Pick and Place Machine JX-350
❙ Introduce of JUKI JX-350
■ Chip: 32,000CPH chip (Laser centering/Optimum); 21,000CPH chip (Laser centering / IPC9850)
■ From 0603 to 33.5mmsquare components
■ JUKI laser centering for high speed, high accuracy placement
■ Improved placement quality
■ Alternate pick by screw-type nozzles* achieves high-speed placement for large component up to 25 mm diameter.
■ High-precision placement of diffusion lenses
■ Capable of up to 1,500 mm long board production, top class board size in industry
■ Various supply methods
❙ Specification of JUKI JX-350
| Model | JUKI JX-350 | |
| Board size | 1time clamping | 650mm×360㎜ |
| 2times clamping | 1,200㎜×360㎜ | |
| 3times clamping* | 1,500㎜×360㎜ | |
| Component height | 6mm/12mm | |
| Component size | 0603(0201) ～ □33.5mm | |
| Placement speed (chip) | Optimum | 32,000CPH |
| IPC9850 | 21,000CPH | |
| Placement accuracy | ±0.05mm（Cpk≧1） | |
| Feeder inputs |
Front-side fixed mechanical feeder bank(Standard) |
Max.40 in case of 8mm tape |
|
Front+rear-side fixed mechanical feeder bank*1 |
Max.80 | |
|
Front+rear-side fixed electrical feeder bank*1 |
Max.160*2 | |
*1 This function is supported with an option.
*2 When using 8mm tape(on a Electric double tape feeder)

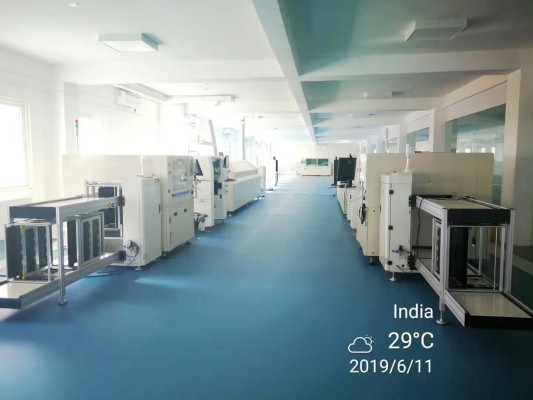

❙ Customer factory
Shenzhen ETA Technology Co., Ltd. Expert in Making Customized High Quality SMT LED Pick and Place Machine, SMT LED Reflow Oven, SMT LED Stencil Printer, SMT Production Line, LED Assembly Line With More Than 23 Years Experience.
Our Goal is to Provide Customers With the Best Service Possible and to Produce Excellent Quality Products That Will Meet or Exceed Your Expectations.
Successful Experience:
Eta's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
