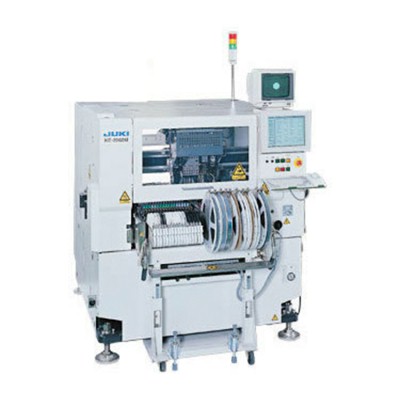

JUKI pick and place machine KE2050
The KE-2050 is typically used as a compliment to the KE-2060 to increase overall throughput by placing the higher volume small chip components SOTs and ICs.
13, 200CPH: Chip (laser centering/effective tact)
One multi-nozzle laser head (4 nozzles)
From 0603 (0201) to 20mm square components or 26.5× 11mm
0402 (01005) option factory installed.
1 Actual throughput may vary.
2 Please download brochure for details
M size (330× 250mm)
L size (410× 360mm)
L -wide (510× 360mm)
E size (510× 460mm)
Laser recognition: 0603~20mm or 26.5× 11mm (0402 (01005) optional)*2
Placement speed: Chip 13, 200CPH*1
Placement accuracy: Laser recognition ± 0.05mm
Feeder inputs: Max. 80 on 8mm T/F
1 Effective tact: The chip placement speed indicates an estimated value obtained when the machine places 400 1608-chips all over an M size board.
(CPH=number of components placed for one hour)
2 Please ask for details on 0402(01005) placement.
